OceanFlex Tinned Marine Battery Cable Red 25.0 sq.mm (~4 AWG)
Custom-made
Marine Grade Tinned Copper Cable
Klauke Crimping System
Crimped in accordance with BS7609
Description
Description

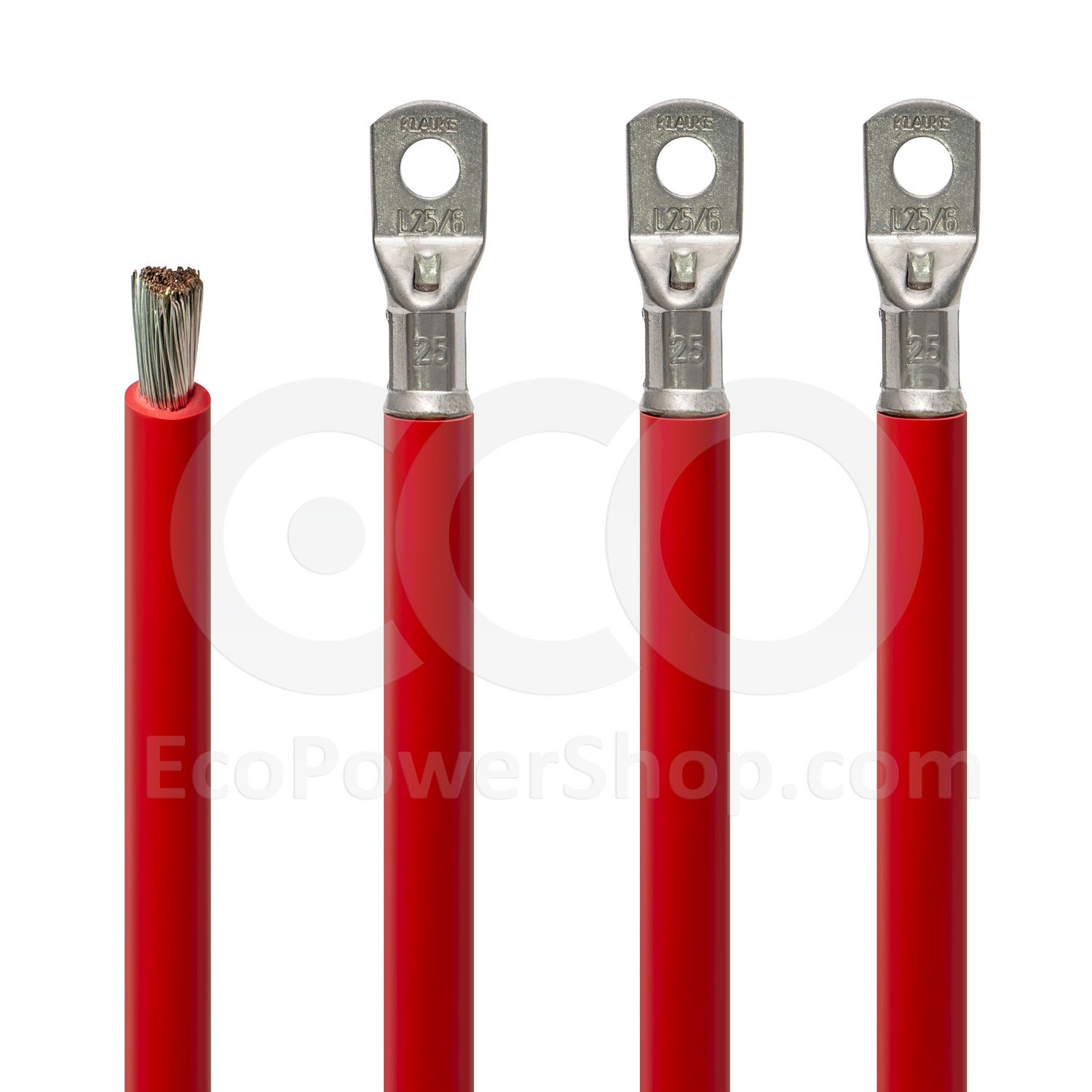

Made-to-Order Red OceanFlex 25mm² 4 AWG Flexible Marine Grade Tinned Cable-Cut to Length with Crimped End Terminal Options
We supply this high quality battery cable cut to the length you require with the following cable end terminals
- No connectors (bare ends)
- M6 (6.0mm hole diameter)
- M8 (8.0mm hole diameter)
- M10 (10.0mm hole diameter)
- M12 (12.0mm hole diameter)
If you need a cable length or specification not shown on our website, please Contact Us with your requirements.
Black and yellow 25mm² cables are also available.
Specifications:
- 25mm² Cable Conductor Cross-Section
- Conductor Specification (mm): 322/0.30
- Nominal Current Rating 170 Amps
- Maximum Overall Diameter: 10.1mm
- Tinned Copper Conductors in accordance with BS EN 60228:2005
- Marine Grade Klauke Tinned Copper Lugs
- Cables crimped in accordance with BS7609
- PVC Insulated
- Minimum Bend Radius: <6x OD
- Suitable for use at temperatures from -30ºC to 70ºC
- Suitable for 12v and 24v systems (maximum 60v)
- Good resistance to petrol, diesel, lubricating oils and diluted acid
- Very good resistance to moisture
- PVC insulation saves weight and offers good resistance to abrasion and cut through
- Cables are printed with the specification on the insulation
Benefits of OceanFlex® Cable:
- Marine-specific flexible cable
- Tinned thin wall low voltage wiring cable designed for use in harsh environments.
- In OceanFlex cable, the copper strands are tin-plated so the cable is highly resistant to corrosion from sea water over long periods of time.
- Oceanflex cables have a much greater life span compared to standard cables.
- This leads to lower repair/maintenance costs and less down time due to electrical faults and failures.
