OceanFlex Tinned Marine Battery Cable Green 10.0 sq.mm (~8 AWG)
Custom-made
Marine Grade Tinned Copper Cable
Klauke Crimping System
Crimped in accordance with BS7609
Description
Description
Custom-made OceanFlex 10mm² 8 AWG Green Flexible Marine Grade Tinned Cable

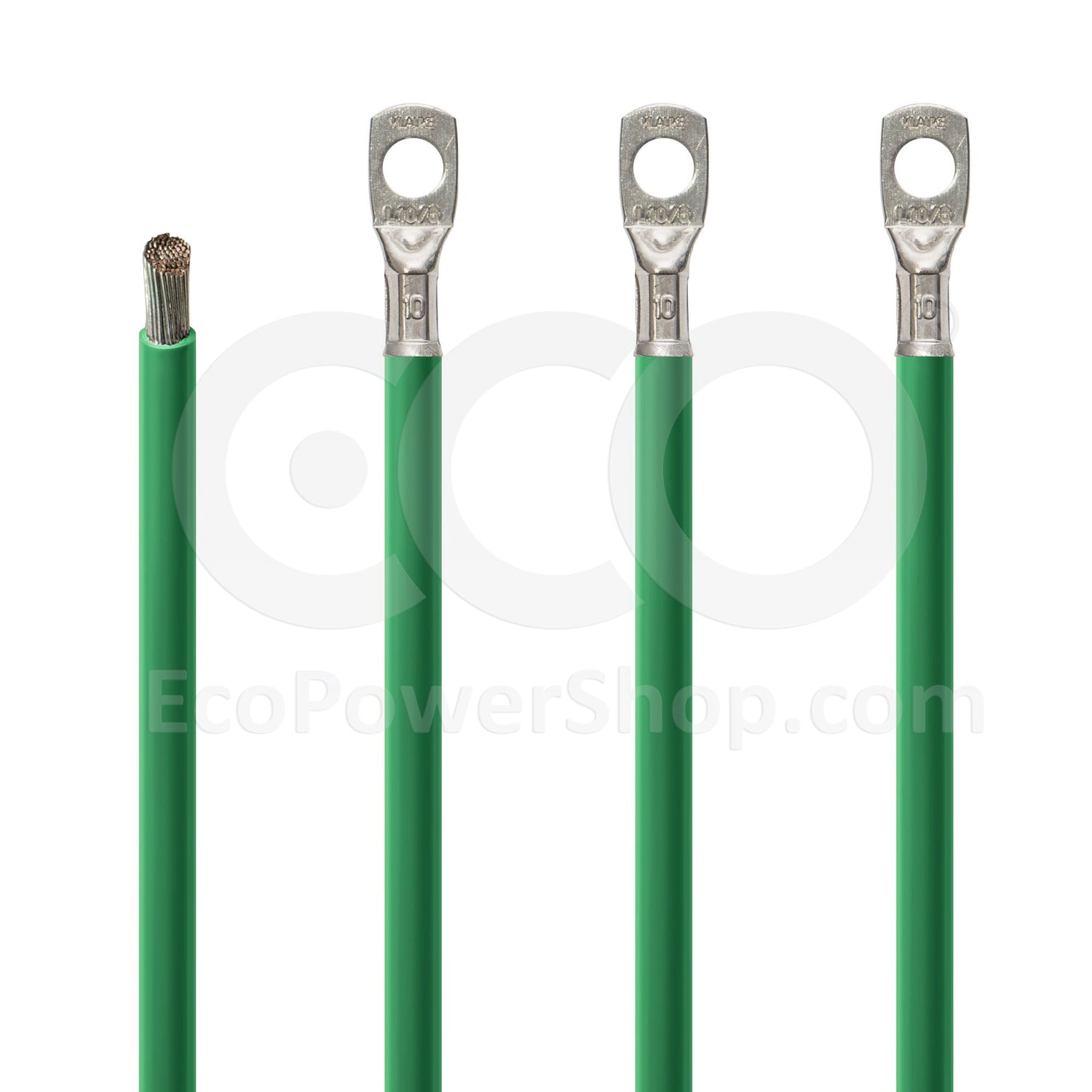

We supply this 10.0 mm² 8 AWG battery cable cut to the length you require with the following choice of cable end terminals
- M5 (5.0mm hole diameter)
- M6 (6.0mm hole diameter)
- M8 (8.0mm hole diameter)
- M10 (10.0mm hole diameter)
Specifications:
- 10mm² Cable Conductor Cross-Section
- Conductor Specification (mm): 80/0.40
- Nominal Current Rating 70 Amps
- Maximum Overall Diameter: 6.0mm
- Cores manufactured to ISO 6722-1:2011 (class B) 105°C
- Tinned Copper Conductors, PVC Insulated
- Suitable for use at temperatures from -40ºC to 105ºC with excursions up to 120ºC
- Twins and multicores PVC sheathed at 70ºC
- Suitable for 12V and 24V systems (maximum 60v)
- Good resistance to petrol, diesel, lubricating oils and diluted acid
- Very good resistance to moisture
- PVC insulation saves weight and offers good resistance to abrasion and cut through
- Cables are printed with the specification on the insulation
Benefits of OceanFlex® Cable:
- Marine-specific flexible cable
- Tinned thin wall low voltage wiring cable designed for use in harsh environments
- In OceanFlex cable, the copper strands are tin-plated so the cable is highly resistant to corrosion from sea water over long periods of time.
- Oceanflex cables have a much greater life span compared to standard cables.
- This leads to lower repair/maintenance costs and less down time due to electrical faults and failures.
If you need a cable length or specification not shown on our website, please Contact Us with your requirements. Also available in red and black cable.
