TE SOLARLOK  |  SKU: 2270024-1

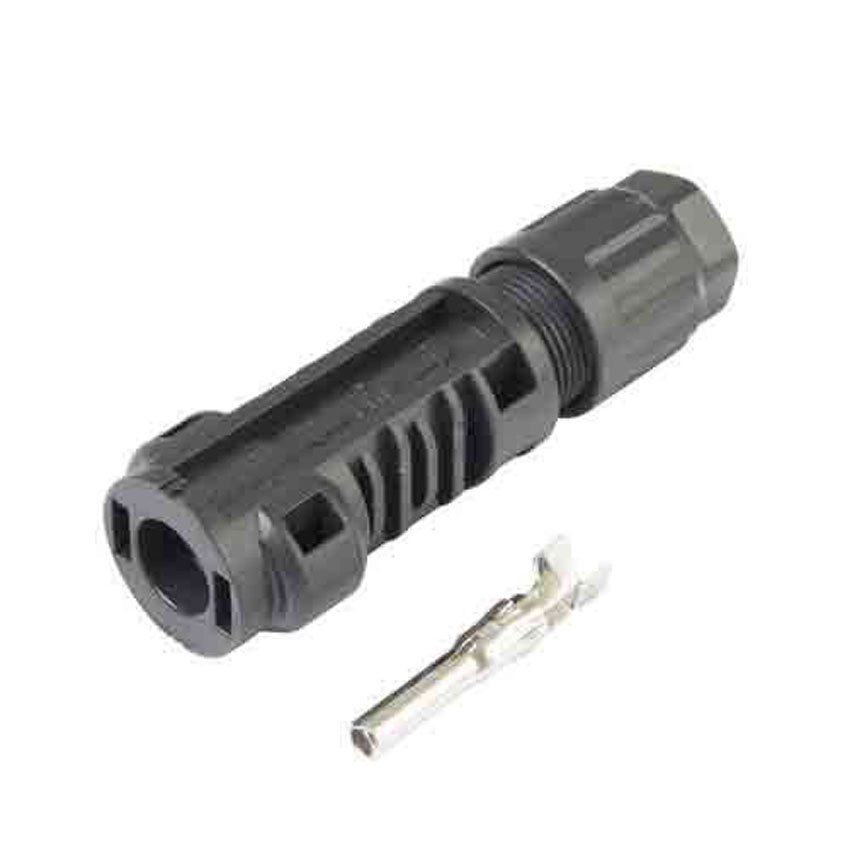

TE SOLARLOK PV4-S Solar Connector Male

£5.99
Tax included Shipping calculated at checkout.


Datasheets

Delivery and Shipping

FREE & ECONOMY UK SHIPPING

We offer FREE Economy UK Delivery on all orders over £25 (2-4 business days).

Our standard delivery cost for UK orders under £25 is £5.00.

Large and heavy items will usually be sent via courier.
Smaller items will be sent by Royal Mail or Amazon Logistics.

EXPRESS UK SHIPPING

If you require an item urgently or within a short time
frame, please select the Express shipping option (1-3 working days).

The cost of this is calculated per order as it is based on
the weight of the products.

INTERNATIONAL SHIPPING

For EU Shipping – you can choose between Standard
Delivery (usually 2-11 days, subject to local customs) or Express Delivery
(usually 2-7 days, subject to local customs).

Worldwide, non-EU shipping times are 2-11 days.
(Please allow extra time for items to clear customs).

The cost of shipping for international orders is calculated per order as it is based on the weight of the products.

[All website prices include UK VAT at 20% - For orders
outside the UK, the 20% VAT will be removed during the checkout when you enter
the shipping destination.]

Description

TE Connectivity SOLARLOK PV4-S solar panel cable connector - MALE

The SOLARLOK PV4-S connector is an upgrade of the industry leading SOLARLOK PV4 connector to meet a minimum 1500V rating with IP68 protection. The SOLARLOK PV4-S connector has been tested to assure reliable and safe connections of solar arrays. The connectors use industry standard crimp tooling.

Supplied with pin contact.

Part no. 2270024-1

SPECIFICATIONS

Rated Voltage: 1000V DC / 1500V DC (UL & TUV IEC)

Rated Current: UL 20A, TUV 40A - 4.0mm.sq /12 AWG (85 deg C)

Rated Current: UL 30A, TUV 45A - 6.0mm.sq /10 AWG (85 deg C)

Contact Resistance: 0.35 milliohms.

Material: Housing - PPE, PS / Contact - Tinned Copper

Cable Sizes: 4.0 - 6.0mm.sq / AWG 12-10

Dimensions: 63.0mm x 24.5mm

IP Rating: IP68 (1m / 24hrs)
