OceanFlex Tinned Marine Battery Cable Black 6.0 sq.mm (~10 AWG)
OceanFlex Tinned Marine Battery Cable Black 6.0 sq.mm (~10 AWG) - 0.25m / Bare Ends (no terminals) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Datasheets
Datasheets
Delivery and Shipping
Delivery and Shipping
FREE & ECONOMY UK SHIPPING
We offer FREE Economy UK Delivery on all orders over £25 (2-4 business days).
Our standard delivery cost for UK orders under £25 is £5.00.
Large and heavy items will usually be sent via courier.
Smaller items will be sent by Royal Mail or Amazon Logistics.
EXPRESS UK SHIPPING
If you require an item urgently or within a short time
frame, please select the Express shipping option (1-3 working days).
The cost of this is calculated per order as it is based on
the weight of the products.
INTERNATIONAL SHIPPING
For EU Shipping – you can choose between Standard
Delivery (usually 2-11 days, subject to local customs) or Express Delivery
(usually 2-7 days, subject to local customs).
Worldwide, non-EU shipping times are 2-11 days.
(Please allow extra time for items to clear customs).
The cost of shipping for international orders is calculated per order as it is based on the weight of the products.
[All website prices include UK VAT at 20% - For orders
outside the UK, the 20% VAT will be removed during the checkout when you enter
the shipping destination.]
Custom-made
Marine Grade Tinned Copper Cable
Klauke Crimping System
Crimped in accordance with BS7727
Description
Description

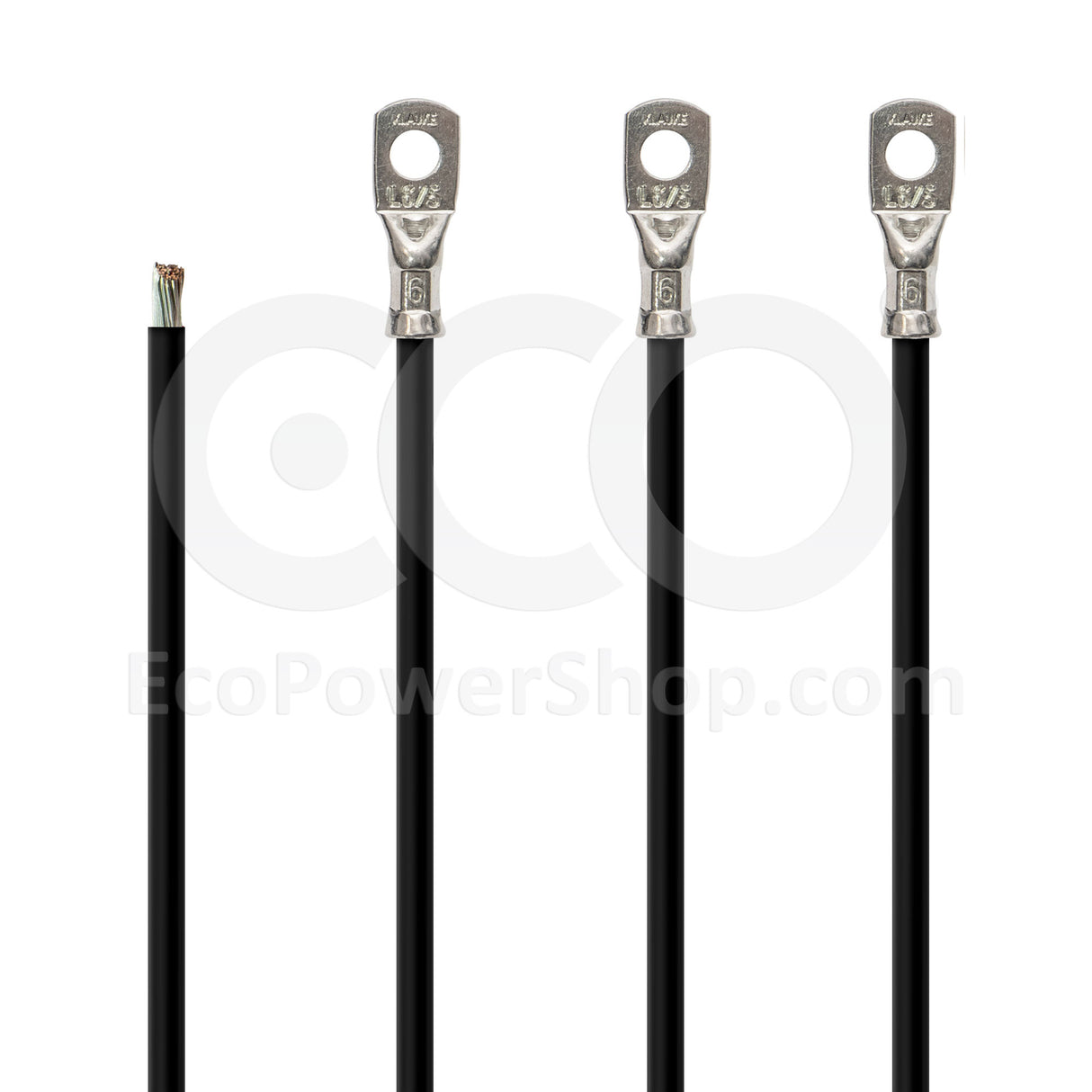

Black OceanFlex 6mm² 10 AWG Flexible Marine Grade Tinned Cable
We supply this 6.0mm.sq 10 AWG OceanFlex cable cut to the length with the following cable end terminals
- M5 (5.0mm hole diameter)
- M6 (6.0mm hole diameter)
- M8 (8.0mm hole diameter)
- M10 (10.0mm hole diameter)
Specifications:
- Tinned Copper Single Core Cable with 6 mm² 10 AWG Cable Conductor Cross-Section
- Conductor Specification: 84/030
- Nominal Current Rating 50 Amps
- Overall Diameter: 4.3 mm
- Tinned Copper Conductors, PVC Insulated
- Suitable for 12V and 24V systems (maximum 60V)
Benefits of OceanFlex® Cable:
- Marine-specific flexible cable
- In OceanFlex cable, the copper strands are tin-plated so the cable is highly resistant to corrosion from sea water and other moisture over long periods of time. This means the cables have a much greater life span compared to standard cables.
- This leads to lower repair/ maintenance costs and less down time due to electrical faults and failures.
- Cores manufactured to ISO 6722-1:2011 (class B) 105°C
- Suitable for use at temperatures from -40ºC to 105ºC with excursions up to 120ºC
- Twins and multicores PVC sheathed at 70ºC
- Good resistance to petrol, diesel, lubricating oils and diluted acid
- Very good resistance to moisture
- PVC insulation saves weight and offers good resistance to abrasion and cut through
- Cables are printed with the specification on the insulation
If you need a cable length or specification not shown on our website, please Contact Us with your requirements. Also available in red and green.
