OceanFlex Tinned Marine Battery Cable Red 6.0 sq.mm (~10 AWG)
Custom-made
Marine Grade Tinned Copper Cable
Klauke Crimping System
Crimped in accordance with BS7727
Description
Description
Red OceanFlex 6mm² 10 AWG Flexible Marine Grade Tinned Cable

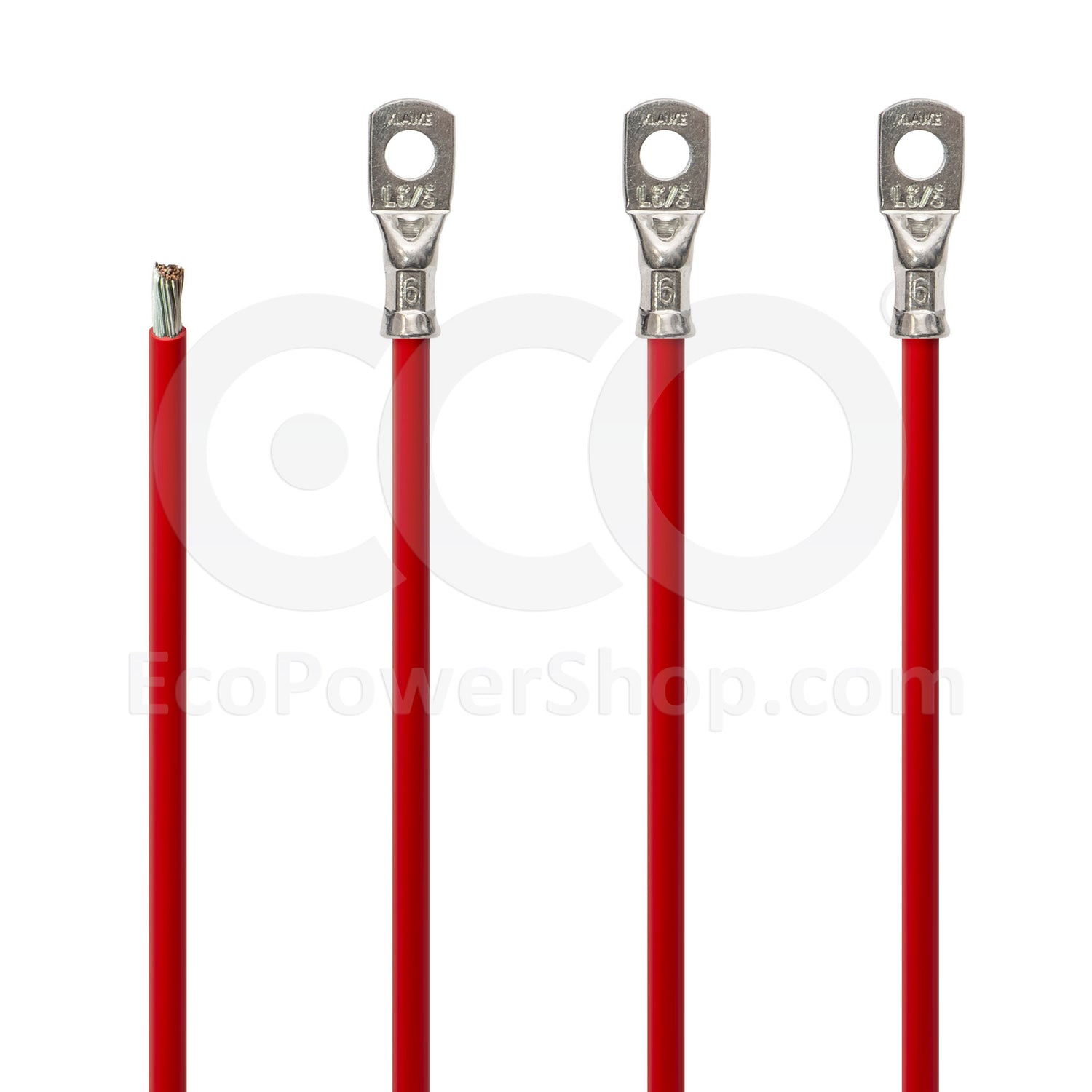

We supply this 6.0mm.sq 10 AWG OceanFlex cable cut to the length with the following cable end terminals
- M5 (5.0mm hole diameter)
- M6 (6.0mm hole diameter)
- M8 (8.0mm hole diameter)
- M10 (10.0mm hole diameter)
Specifications:
- Tinned Copper Single Core Cable with 6 mm² 10 AWG Cable Conductor Cross-Section
- Conductor Specification: 84/030
- Nominal Current Rating 50 Amps
- Overall Diameter: 4.3 mm
- Tinned Copper Conductors, PVC Insulated
- Suitable for 12V and 24V systems (maximum 60V)
Benefits of OceanFlex® Cable:
- Marine-specific flexible cable
- In OceanFlex cable, the copper strands are tin-plated so the cable is highly resistant to corrosion from sea water and other moisture over long periods of time. This means the cables have a much greater life span compared to standard cables.
- This leads to lower repair/ maintenance costs and less down time due to electrical faults and failures.
- Cores manufactured to ISO 6722-1:2011 (class B) 105°C
- Suitable for use at temperatures from -40ºC to 105ºC with excursions up to 120ºC
- Twins and multicores PVC sheathed at 70ºC
- Good resistance to petrol, diesel, lubricating oils and diluted acid
- Very good resistance to moisture
- PVC insulation saves weight and offers good resistance to abrasion and cut through
- Cables are printed with the specification on the insulation
Also available in black or green cable. If you need a cable length or specification not shown on our website, please Contact Us with your requirements.
