OceanFlex Tinned Marine Battery Cable Red 16.0 sq.mm (~6 AWG)
Custom-made
Marine Grade Tinned Copper Cable
Klauke Crimping System
Crimped in accordance with BS7609
Description
Description
Flexible Marine Grade Tinned Cable- Cut to Length with Various Crimped End Terminal Options

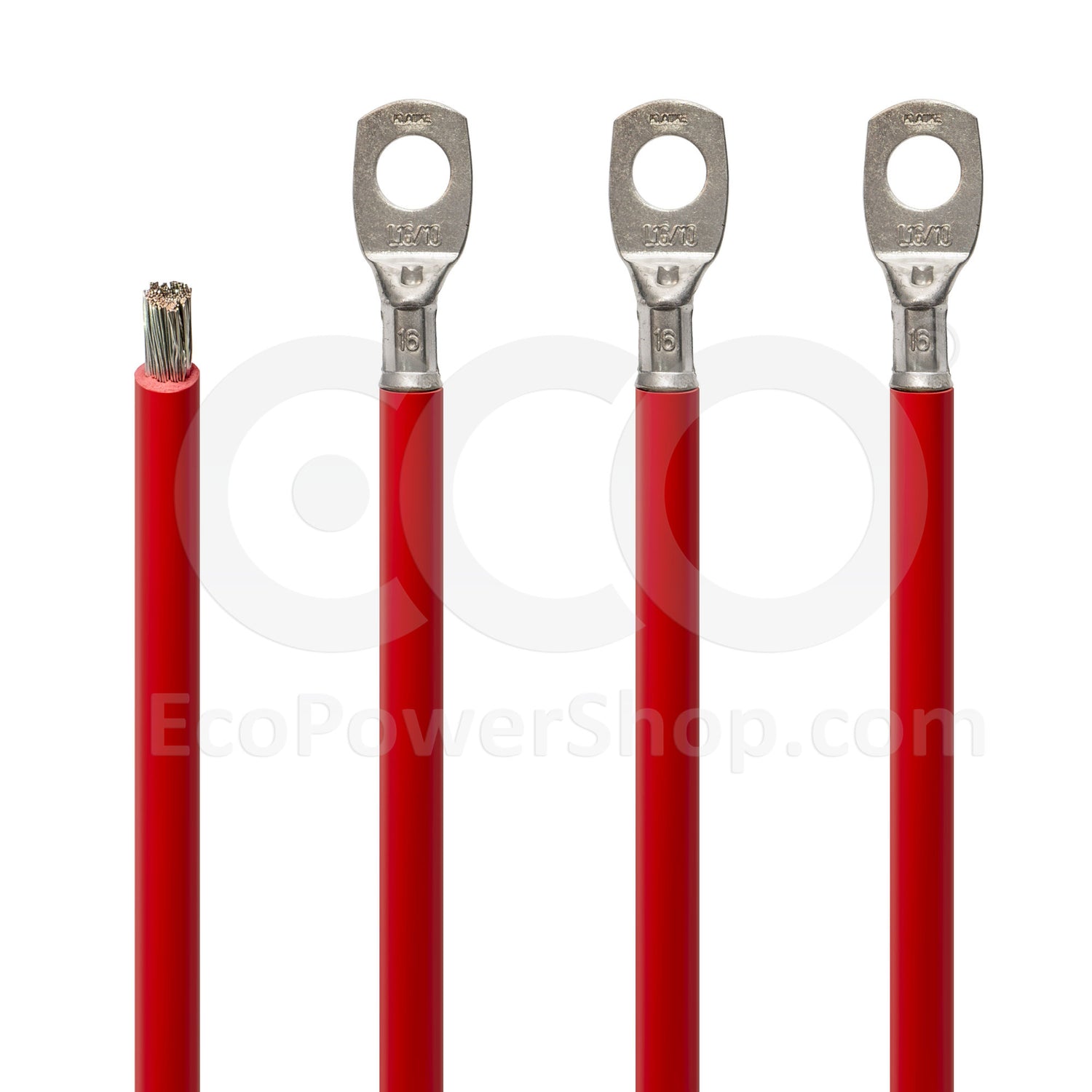

We supply this 16.0mm.sq 6 AWG OceanFlex cable cut to the length you require with the following cable end terminals
- M5 (5.0mm hole diameter)
- M6 (6.0mm hole diameter)
- M8 (8.0mm hole diameter)
- M10 (10.0mm hole diameter)
Specifications:
- 16mm² Cable Conductor Cross-Section
- Conductor Specification (mm): 203/0.30
- Nominal Current Rating 110 Amps
- Maximum Overall Diameter: 8.3mm
- Tinned Copper Conductors in accordance with BS EN 60228:2005
- Yellow Cable - ISO 13297 compliant DC negative applications
- PVC Insulated
- Minimum Bend Radius: <6x OD
- Suitable for use at temperatures from -30ºC to 70ºC
- Suitable for 12v and 24v systems (maximum 60v)
- Good resistance to petrol, diesel, lubricating oils and diluted acid
- Very good resistance to moisture
- PVC insulation saves weight and offers good resistance to abrasion and cut through
- Cables are printed with the specification on the insulation
Black and yellow 16mm² cable are also available.
Benefits of OceanFlex® Cable:
- Marine-specific flexible cable
- Tinned thin wall low voltage wiring cable designed for use in harsh environments
- In OceanFlex cable, the copper strands are tin-plated so the cable is highly resistant to corrosion from sea water over long periods of time.
- Oceanflex cables have a much greater life span compared to standard cables.
- This leads to lower repair/maintenance costs and less down time due to electrical faults and failures.
If you need a cable length or specification not shown on our website, please Contact Us with your requirements.
