OceanFlex Tinned Marine Battery Cable Black 95.0 sq.mm (~3/0 AWG)
Custom-made
Marine Grade Tinned Copper Cable
Klauke Crimping System
Crimped in accordance with BS7609
Description
Description

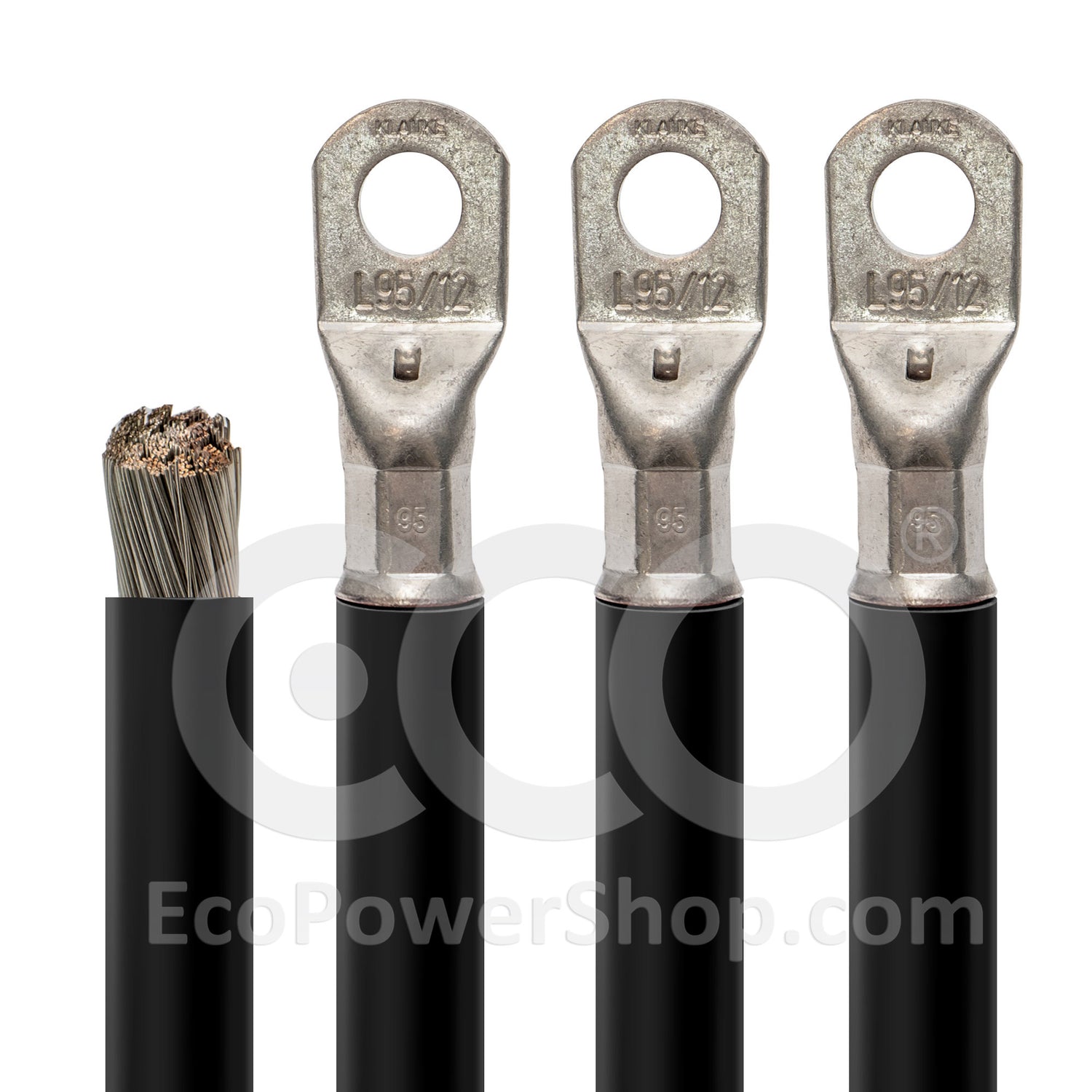

Made-to-Order 95mm², 3/0 AWG OceanFlex Flexible Tinned Marine Battery Cable
- High quality battery cable cut to the length you require with crimped end terminal connector lugs available in the following sizes:
- M8 (8.0mm hole diameter)
- M10 (10.0mm hole diameter)
- M12 (12.0mm hole diameter)
- The end terminals crimped in accordance with BS7609.
- We use a Klauke crimping system which consists of a Klauke calibrated hydraulic crimping tool, Klauke die set and Klauke tinned copper lugs to ensure the perfect crimp.
- There is the option to select different sizes for different ends of the cable or just plain bare ends.
- If you require a combination not listed then please just let us know as we can create any combination you require.
Specifications:
- 95mm² Cable Conductor Cross-Section
- Conductor Specification (mm): 684/0.40
- Nominal Current Rating 500 Amps
- Maximum Overall Diameter: 17.9mm
- Tinned Copper Conductors in accordance with BS EN 60228:2005
- PVC Insulated - saves weight and offers good resistance to abrasion and cut through
- Minimum Bend Radius: <6x OD
- Suitable for use at temperatures from -30ºC to 70ºC
- Suitable for 12v and 24v systems (maximum 60v)
- Good resistance to petrol, diesel, lubricating oils and diluted acid
- Very good resistance to moisture
- Cables are printed with the specification on the insulation
Benefits of OceanFlex® Cable:
- Marine-specific flexible cable
- Tinned thin wall low voltage wiring cable designed for use in harsh environments
- In OceanFlex cable, the copper strands are tin-plated so the cable is highly resistant to corrosion from sea water over long periods of time.
- Oceanflex cables have a much greater life span compared to standard cables.
- This leads to lower repair/maintenance costs and less down time due to electrical faults and failures.
If you need a cable length or specification not shown on our website, please Contact Us with your requirements.
