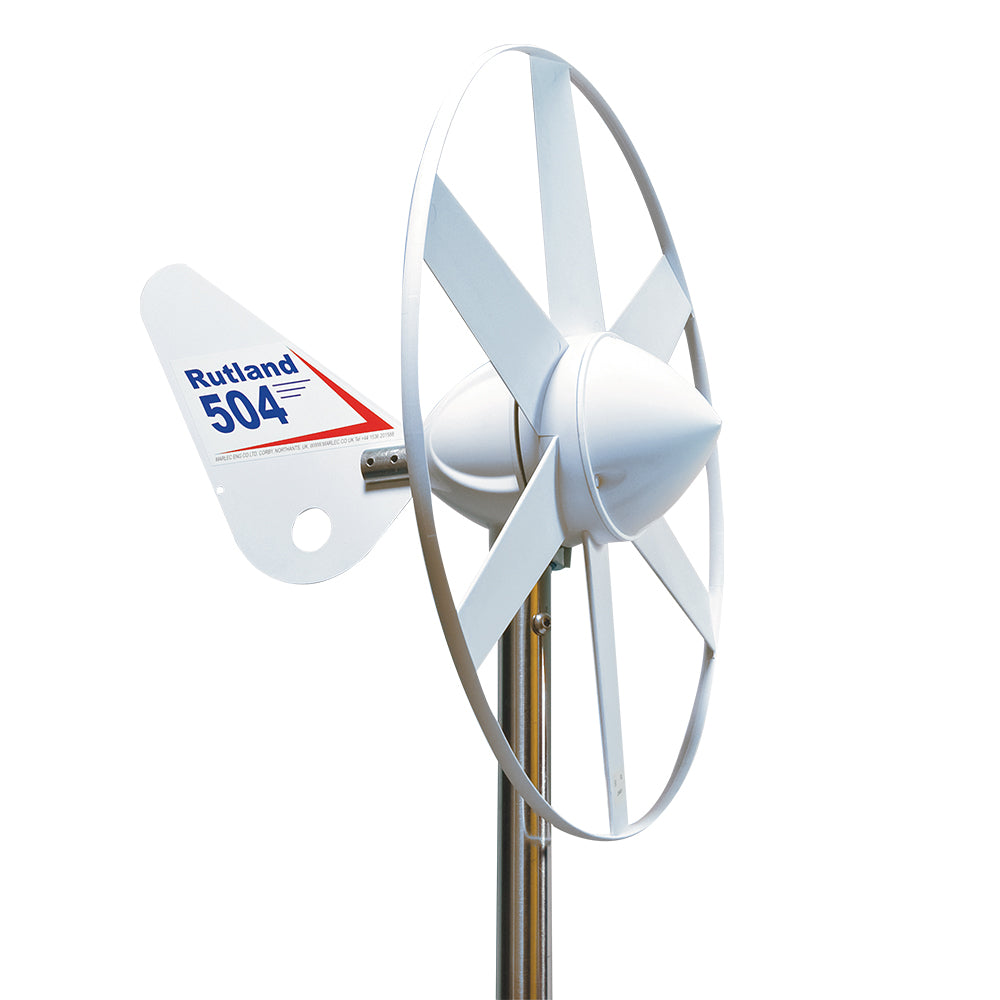

Rutland 504 Wind Turbine 12V
Lightweight
Only 3.5kg
Compact Size
510mm Diameter
Description
Description

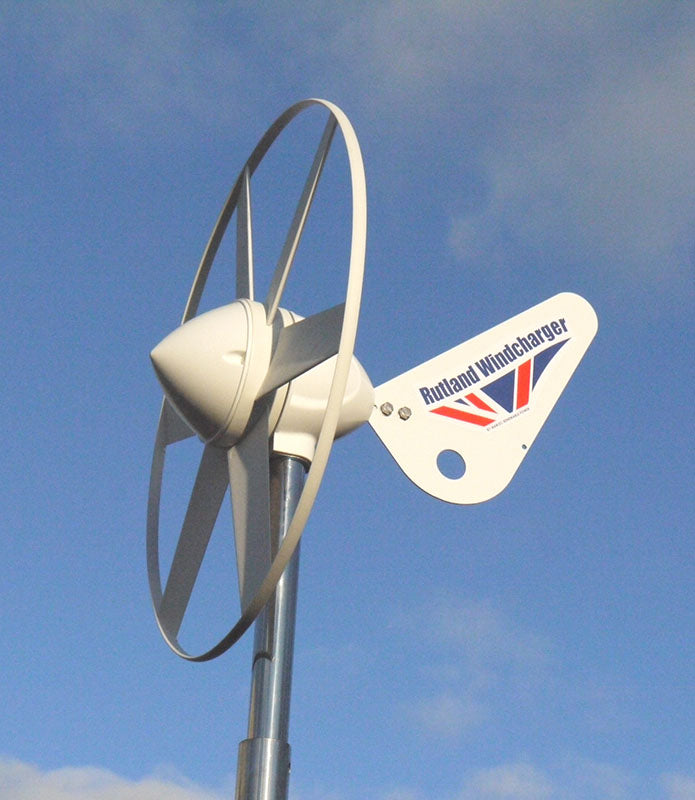

The Rutland 504 windcharger is very compact and perfect for trickle charging small battery systems on board boats or caravans and motorhomes.
Key features of this 12V wind turbine
- Lightweight for easy installation – only 3.5 kg

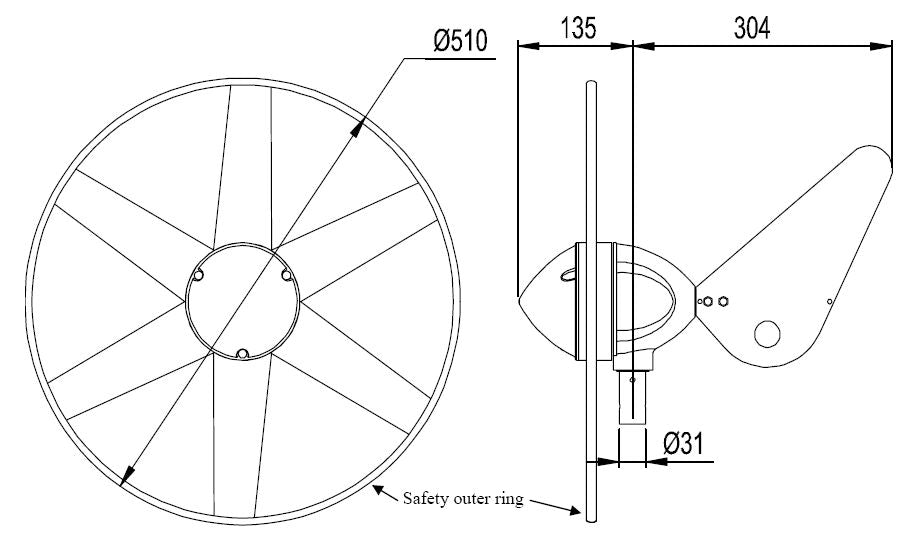

- Compact – turbine diameter of 510mm

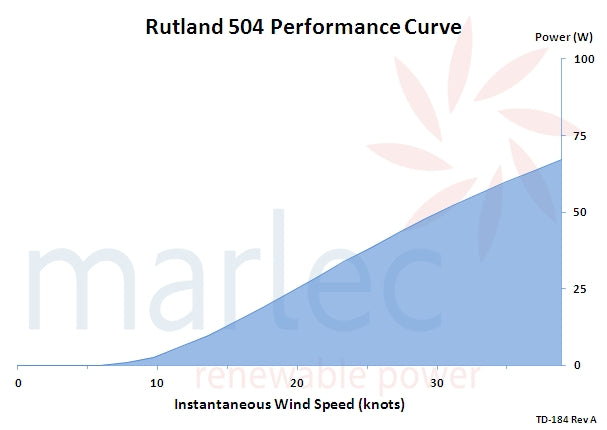

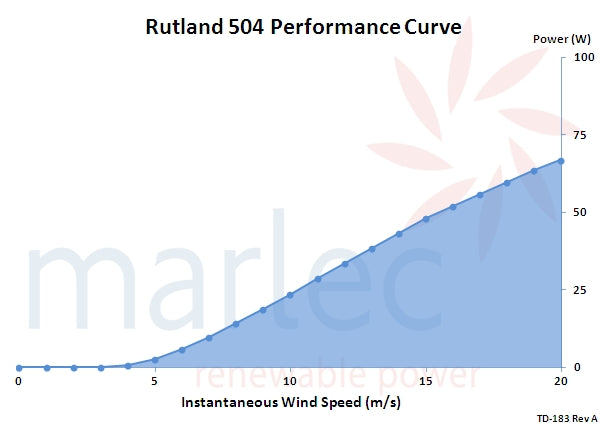

- Produces 29W at 11m/s wind speed. Max output 80W
- Safe – the blade tips are protected by an outer ring, making it ideal for use on boats
- Quiet – the low friction 3-phase alternator allows for a smooth and silent output
Can be mounted using a tube of 31mm internal diameter, max external diameter 37mm. A marine mounting kit and stays kit is available for easy mounting of the 504 turbine on boats.
The popularity of the Rutland 504 and 914 marine wind turbines can be seen in any marina.
Accessories
To avoid battery overcharging the 504 wind turbine should be used with one of the following:
HRSi Regulator – can be used with the Rutland 504 plus up to 160W of solar panels
HRDi Charge Controller – can be used with the Rutland 504 and up to 160W of solar panel input.
Specifications
Specifications
-
Power Output
-
Peak Output
-
Turbine Type
-
Cut-in Wind Speed
-
Rotor Diameter
-
Swept Area
-
Mounting Pole
-
Weight
-
EPS Power Rating
-
EPS Noise Rating
-
Rotor Type
-
Blade Material
-
Body Construction
-
Generator Type
-
Control Mode-
-
Overspeed Protection-
-
Survival Wind Speed-
-
Solar Input?-
-
Warranty-
